Telemetry

Viewing Nutanix cluster metrics in prometheus/grafana

Posted on by gary

Using Nutanix API with prometheus push-gateway.

Many customers would like to view their cluster metrics alongside existing performance data using Prometheus/Grafana

Currently Nutanix does not provide a native exporter for Prometheus to use as a datasource. However we can use the prometheus push-gateway and a simple script which pulls from the native APIs to get data into prometheus. From there we can use Grafana or anything that can connect to Prometheus.

The goal is to be able to view cluster metrics alongside other Grafana dashboards. For example show the current Read/Write IOPS that the cluster is delivering on a per container basis. I’m hard-coding IPs and username/passwords in the script which obviously is not production grade, so don’t do that.

Continue reading →

How to monitor SQLServer on Windows with Prometheus

Posted on by gary

TL;DR

  • Enable SQLServer agent in SSMS
  • Install the Prometheus Windows exporter from github the installer is in the Assets section near the bottom of the page
  • Install Prometheus scraper/database to your monitoring server/laptop via the appropriate installer
  • Point a browser to the prometheus server e.g. :9090
    • Add a new target, which will be the Windows exporter installed in step.
    • It will be something like <SQLSERVERIP>:9182/metrics
    • Ensure the Target shows “Green”

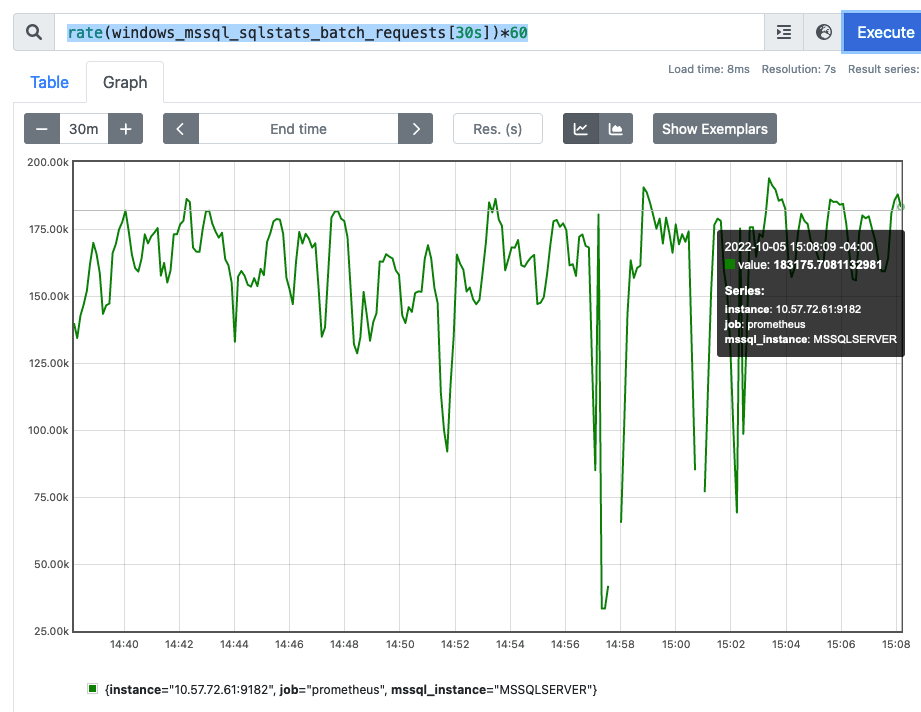

  • Check that we can scrape SQLserver tranactions. In the search/execute box enter something like this
    rate(windows_mssql_sqlstats_batch_requests[30s])*60
  • Put the SQLserver under load with something like HammerDB
  • Hit Execute on the Prometheus server search box and you should see a transaction rate similar to HammerDB
  • Install Grafana and Point it to the Prometheus server (See multiple examples of how to do this)
Continue reading →
